Flip-top packaging is a transparent plastic case with a hinge that closes like a shell. It allows your product to be seen while protecting it during shipping and on the shelf. For custom flip-top packaging, we can select thickness by weight, choose the sealing method, and add paper cards and anti-theft features to ensure it passes drop tests without incurring additional costs.
Last updated: September 2025 | Estimated reading time: 9 minutes
This article will answer your questions
- What is a clamshell packaging?
- How is it different from clamshell blister packaging?
- How to choose between PET, rPET, PP, PETG, OPS, and PVC?
- Sealing method: How to choose between snap, heat seal, ultrasonic, and RF (high frequency)?
- Application of food clamshell packaging in baking, salad and fruit scenes
- How to customize clamshell packaging?
What are clamshell packaging boxes?

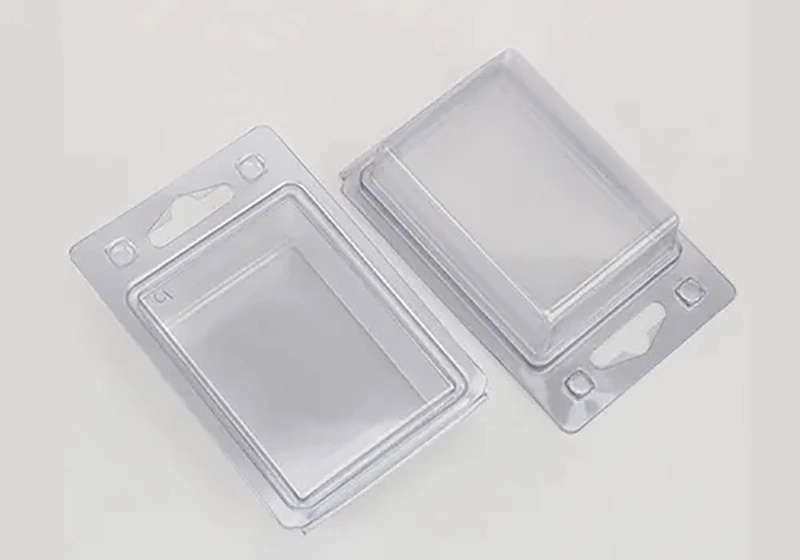

Clamshell packaging is a one-piece, hinged plastic case. Created from thermoformed plastic in a clamshell configuration, it creates a sturdy structure that snaps shut or can be sealed with a secure edge seal. This provides high visibility, excellent protection, and the ability to insert a paper card or backing card for branding and barcode information.
The flip lid is thermoformed: a heated plastic sheet is vacuum-formed/pressure-formed in a mold, and then trimmed. The hinge is formed in one step. It is commonly used in tools, toys, electronic accessories, small accessories, cakes, salads, sandwiches, etc.
Clamshell vs. Blister: what’s the difference?
Blister packaging: single transparent shell + paper card sealing.
Clamshell: Two transparent shells with hinges, closed shell to shell.
If you want a low price, compact and light product, blister packaging is the best choice; if you want resealable packaging, three-dimensional packaging, or higher theft protection, flip-top packaging is more suitable.
| Packaging Type | Components | Typical Seal | Best For | What It Means to You |
|---|---|---|---|---|
| Blister + Card | 2 pcs | Heat seal / RF to card | Lightweight items | Lowest cost, fast to market |
| Clamshell (Snap-Close) | 1 pc | Snap closure | Retail requiring reclose | Easy open/close, returns-friendly |
| Clamshell (Sealed) | 1 pc | Perimeter heat seal / Ultrasonic / RF | High-theft retail | Strong tamper resistance, harder to open |
- Want a resealable lid? Choose the snap-on flap.
- Want to prevent tampering? Add perimeter heat sealing or corner ultrasonic sealing.
- Heavy/sharp-edged items? Consider using a window box with inner support for added security.
Case Study: A DIY tool brand in Zhejiang province switched from windowed cartons to heat-sealed flaps. Results: Store theft decreased by 18%, shipping damage decreased by 12%, and display volume remained unchanged.
What material is used for clamshell packaging?
PETG is commonly used in medical and consumer products and is tough and durable.
HIPS has good impact resistance and heat resistance and is suitable for products that need to be transported over long distances.
PP is economical, has high flexural strength, is impact-resistant and moisture-resistant, making it suitable for medical and food packaging.
PC has high strength and high temperature resistance, but is more expensive.
Retail: 0.30–0.80 mm, depending on weight and risk.
Food: 0.30–0.60 mm is common.
A draft angle of 3–5° is recommended for vertical walls; a radius of ≥0.75 mm can reduce cracking and stress whitening.
| Material | Clarity | Hinge Life | Heat Resistance | What It Means to You |
|---|---|---|---|---|
| APET / rPET | High | Medium | Medium (~60–70 °C) | Retail clarity, recyclable (♻️ #1 PET) |
| PETG | Very high | Medium | Medium | Easier sealing, less stress whitening |
| PP | Medium | High | High | Hot food chain, more durable living hinges |
| OPS | High | Low | Low | Low cost, watch for brittleness |
| PVC | High | Medium | Medium | Fast RF sealing, but compliance restrictions |
How is the flap sealed: heat seal, RF, ultrasonic, or snap?
Choose by risk, speed, and experience:
- Snap-Fit: Plastic mold forms a snap fit for easy opening and closing, allowing for multiple openings.
- Circumferential heat sealing: Heating the material softens the edges and external pressure causes them to bond, forming a seal.
- Ultrasonic spot welding: High-frequency vibration of the machine fuses the materials without heating, and the seal is neat and beautiful.
- RF (high frequency): High frequency electromagnetic waves melt the material locally, resulting in a fast sealing speed.
Add tear strips or weld tracks to guide your customers on how to open.
Design rules to save money:
- The height of the clip rib is ≈ 0.6–0.8× the wall thickness; a gap of ≈0.3 mm is reserved.
- The hinge base is thicker on PET; a true “living hinge” is better suited to PP.
- Hanging hole standard: “Brim hole” 9×3 mm, centered to prevent tilting.
What are the applications of clamshell packaging?
Retail flip: tools, electronic accessories, toys, makeup sets.
Jewelry clamshell package.

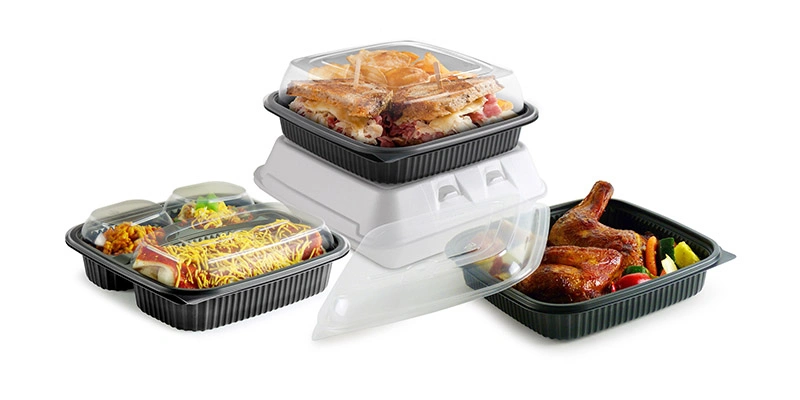

Food flip cover: cupcake clamshell packaging, salad, berry, sandwich, etc.
Food packaging requires the appropriate FDA/EU food contact compliance documentation. For refrigerated fruits and vegetables, choose anti-fog PET with ventilation holes. For hot food chains, prefer PP to prevent PET from softening and deforming.
- Want high visibility and theft prevention? Heat-sealed flap around the perimeter.
- Resealable? Snap-on flap.
- Looking for the lowest price for lightweight packaging? Blister + cardboard.
- Want a more “green look”? Paper window boxes or papier-mâché flaps.
What are the types of clamshell packaging?
- Press closure: snap fastener, circumferential heat seal, ultrasonic spot welding.
- By format: single chamber, multi-chamber, tri-fold standing type.
- By Market: Retail Blister/Clamshell
- Food flap with holes, cupcake multi-cavity flap.
| Type | Features | Best For | What It Means to You |
|---|---|---|---|
| Snap-Close | Reclosable, high line speed | Accessories, crafts | Easy to use, returns-friendly |
| Heat-Sealed | Tamper-evident | High-theft categories | Reduces in-store shrink |
| Tri-Fold | Free-standing | Peg hooks & shelves | Flexible merchandising |
| Vented Food | Airflow + anti-fog | Produce, salads | Less condensation, clearer view |
What are the advantages of clamshell packaging?
- Strong protection ability. It can effectively protect the product from damage during transportation and storage, and extend the shelf life of the product.
- The display effect is good. Your customers can clearly see the products inside, which increases their desire to buy.
- Easy to open and close. It is convenient for your customers to open or close the package at any time.
- Highly customizable. Size, shape, pattern and material can be flexibly customized.
What are the disadvantages of clamshell packaging?
- The cost is high. The production process of flip-top packaging is complex and the mold cost is high.
- Difficult to recycle. The use of plastic materials makes it difficult to recycle.
- It takes up a large storage volume. Unlike single-layer packaging, it is not convenient to lay flat for transportation and storage, which increases costs.
How to customize clamshell packaging for you?
Based on the product and risk, you provide the product’s dimensions, weight, drop height, and anti-theft rating, and then we select the clamshell packaging’s material, thickness, closure method, and cardboard structure.
- Material selection: rPET 30–100% preferred for retail; PP for hot consumption.
- Thickness: Determined by weight and shipping risk (0.30–0.80 mm is common).
- Closure: snap-on (reclosable) or seal (tamper-evident).
- Brand: J card/back card, try to keep the ink on the paper to facilitate recycling.
- Tests: top pressure, drop, seal peeling, haze/gloss.
- Packing: number of nests per stack, whether to add anti-scratch spacers.
Clamshell packaging trends in 2025
Retailers are promoting rPET ≥ 30% and clearer “1-PET” labeling. More brands are incorporating easy-open labels/tear strips to reduce returns due to rough opening. Food retailers are turning to anti-fog PET and PP hot chain packaging. To improve sorting rates, more companies are adopting a single-material system (PET shell + PET label).
Recycled Content Declaration: RFQs often require suppliers to produce a declaration or LCA.
Anti-glare window: Reduces mis-scanning of barcodes due to reflections under LEDs.
EPR Design: Reduces weight and part count, reducing costs.
Market observation: Handmade and small electronic products prefer multi-cavity flip covers; one set of molds + replaceable paper cards can cover multiple SKUs.
FAQs
Visualization boosts sales. The rigid outer shell protects soft foods. Breathing holes and anti-fog design keep food fresh, and the packaging is easy to stack.
Circumferential heat sealing or spot welding is used to prevent tampering. Many clamshell packaging now incorporates tear strips or welded tracks, allowing your customers to open the package safely without a knife.
A flip cover is two pieces of plastic with a hinge, closing the shells together; a blister is a single piece of plastic heat-sealed to a paper card. Blisters are cheaper; flip covers are sturdy, resealable, and more secure against theft.
For retail transparency and compliance, choose rPET; for hot food and live hinges, choose PP. Most retailers restrict PVC, so avoid it if possible.
Conclusion
Flip-top protective packaging combines display and protection. Choose rPET for retail applications; choose PP for hot food chains. The design should include a draft angle, appropriately rounded corners, reinforced ribs, and an easy-open design.
